electromagnetic Overhead crane
QC Electromagnetic Overhead Crane With Magnet Cap

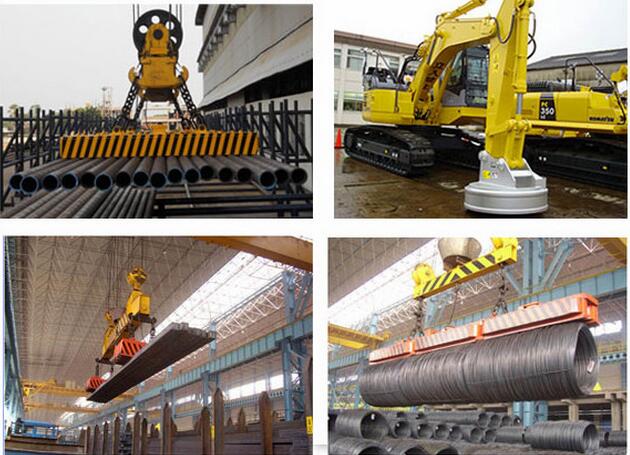

The Electromagnetic Overhead Crane has the knock-down electromagnet disk. It is especially applicable to transmit the black-metallic products and materials of magneto conductivity, such as steel ingot, profiled bar and pig iron block, etc. The crane is widely used in steel rolling lines of steel company storage shipyard and workshop, etc.
This type of crane, its lifting capacity includes the weight of the carrier-beam. But the total weight doesn’t include the weight of the carrier-beam.
Technical Parameter:
Capacity | T | 5 | 10/3 | 16/3 | 20/5 | 32/10 | ||
Operational method | Pendent line with press button /cabin/remote control | |||||||
Speed | Main hook Lifting |
m/min |
8 ,8/0.8 | 7,7/0.7 | 3.5 | 5 | 5 | |
Aux. hook Lifting | 8 | 8 | 7 | |||||
Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
Long travelling | Ground | 30 | 30 | 30 | 30 | 30 | ||
Cabin | 60 | 60 | 60 | 60 | 45.75 | |||
Motor | Lifting | Type /kw | ZD141-4/7.5 | ZD151-4/13/
ZD132-4/4.5 |
ZD151-4/13/
ZD132-4/4.5 |
ZD151-4/13
ZD152-4/18.5 |
ZD162-4/30 | |
Cross travelling | ZDY122-4/0.8×2 | ZDY122-4/1.5×2 | ZDY122-4/1.5×2 | ZDY122-4/1.5×2 | ZD131-4/3 | |||
Long travelling | Ground | ZDY122-4/1.5×2 | YZPEY2200-4/2.2×2 | YZPEY2200-4/2.2×2 | ZDDY31M-4/12/2×3.1/1.0 | ZD131-4/3×2 | ||
Cabin | ZDY122-4/1.5×2 | ZDR112L2-4/3×2 | ZDR112L2-4/3×2 | ZDR112L2-4/3×2 | YZRS114M-4/5×2 | |||
Electric hoist | Type | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1/HC | HC | ||
Lifting height | m | 6,9,12,18,24,30 | 9,12,18,24 | |||||
Working duty | A5 | |||||||
Power supply | Adjustable | |||||||
Span | m | 7.5-22.5 | ||||||
Recommend rail | 38kg/m | 43kg/m |
