Container Straddle Carrier

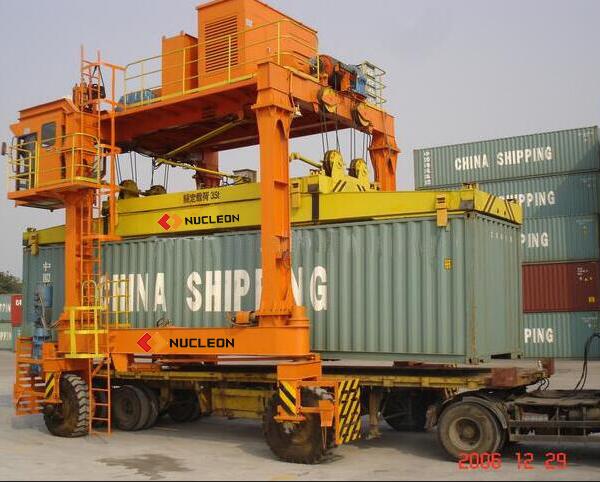

container straddle carrier

Container Straddle Carrier

1.  Rubber tyre container gantry crane applies to international standard container transporting, loading and unloading at the container yard and railway container depots, with stable performance, high efficiency and ease maintenance having proper safety instructions and overload protection devices to maximizely ensure the safety of operational personnel and equipment. Electrical system uses PLC frequency adjustment which can easily control every mechanism.

2.The working duty of container straddle carrier is A6-A7.The working temperature is -20°c~40°c.

The drawing of Container Straddle Carrier

The drawing of Container Straddle Carrier

The Technical parameters of container straddle carrier

Lifting Capacity (t) 10 16 20/10 32/10 36/16 50/10
Span (m) 18-35
Lifting Height (m) 10-13
Duty Class A5-A8
Speed
(m/min)
Lifting 8.5 7.9 7.2/10.4 7.5/10.4 7.8/10.5 6/10.4
Trolley 43.8 44.5 44.5 41.9 41.9 38.13
Crane 40 38 38 40 40 38
Motor Lifting YZR180L-6/17 YZR225M-8/26 YZR225M-8/26
YZR200L-6/26
YZR280S-10/42
YZR200L-6/26
YZR280M-10/55
YZR225M-6/34
YZR280M-10/55
YZR200L-6/26
Trolley YZR132M1-
6/2.5*2
YZR132M2-
6/4*2
YZR132M2-
6/4*2
YZR132M1-
6/4*2
YZR132M1-
6/6.3*2
YZR132M1-
6/6.3*2
Crane YZR160L-6/13*2 YZR160L-6/13*2
YZR160M1-
6/6.3*4
YZR160L-6/13*2
YZR160M2-
6/8.5*4
YZR160M2-
6/8.5*4
YZR160L-6/13*4
YZR160M2-
6/8.5*4
YZR160L-6/13*4
Weight
(t)
Trolley 9 9.5 12 16 18 24
Total 63.2-100 78-106 79-120 95-108 106-155 195
Wheel Pressure (KN) 225-295 255-373 208-289 324-334 314-363 452
Steel Track 43kg/m 50kg/m
Power Source 3-phase A.C 380V 50HZ (As your demand)
