Pillar Slewing crane

Pillar Slewing crane is a material handling machine whose cantilever can rotate around a fixed base column. The equipment consists of a column device, a rotating device, a cantilever device and a chain electric hoist, including upper and lower columns, a main beam, a lifting mechanism and other components. The lower end of the column is fixed to the concrete foundation, and the cantilever can be rotated manually or electrically.

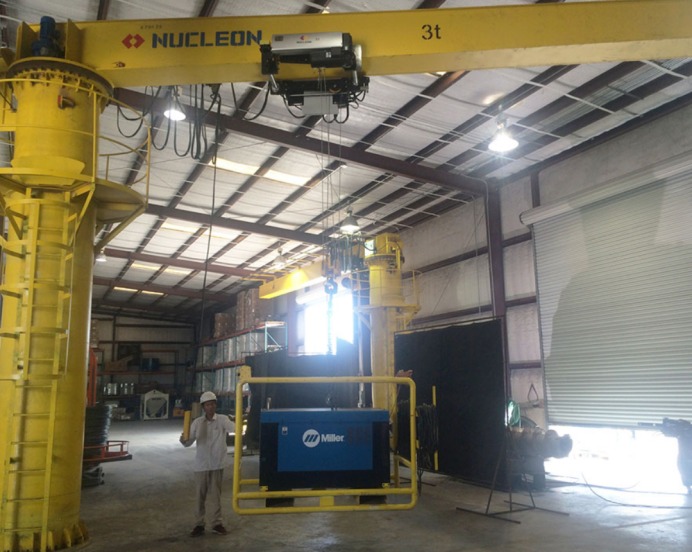

Pillar Slewing crane
Pillar Slewing crane

Large effective boom length with a maximum lifting capacity of up to 5,000kg. The low headroom jib allows for large lifting heights. The unrestricted swivel angle is a great advantage, especially when the working area is large.

Pillar Slewing crane Features

1.Maximum lifting capacity 5000kg.

2.Maximum cantilever length 10 meters (<1000kg).

3.N*360°full rotation.

4.The cantilever adopts H-beam as the cantilever material, low headroom design.

5.Optional electric running and electric rotating mechanism is available.

6.Utilizing chemical bolts to install directly to the concrete floor, convenient and fast.

7.When the lifting capacity is large, it is recommended to use the pre-buried bolt installation method.
