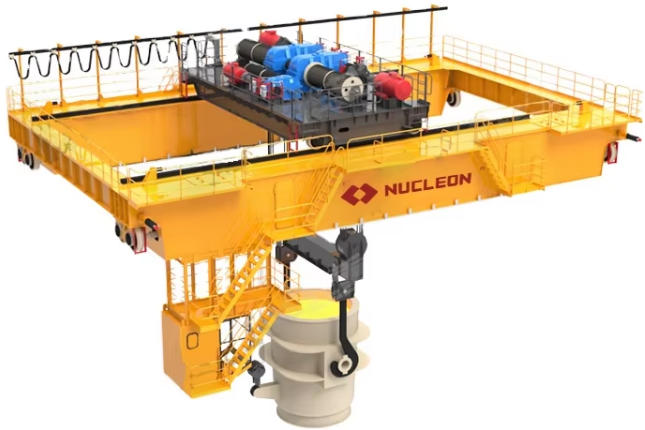

Double Girder Ladle Handling EOT Crane
Double Girder Ladle Handling EOT Crane
Double Girder Ladle Handling EOT Crane is mainly used at the place where the molten metal is lifted. The thermal—protective coating is added at the bottom of the main girder. The ladle handling crane transports ladles filled with molten iron to the basic oxygen furnace (BOF), or molten steel from the BOF and electric arc furnace to the continuous casting machine. It can also be used for teeming and casting. As with the charging crane, safety and reliability come first with this crane since it is used to transport molten steel. It is divided into two types of working systems according to the busy level: intermediate level is suitable for machinery processing, metal structure, assembly and other workshops; heavy level is suitable for smelting workshops and handling work in continuous production.
Overall structure can be divided into: double girder double-track, four beams and four-track, four-beam rail and other types. The first two are generally used for large tonnage crane, and the third is generally used for large tonnage of foundry crane.
Casting crane company design and manufacture of advanced technology, novel structure safe and reliable, economical and durable, and easy maintenance. In addition, our casting crane offers the following features to be selected:
- rotary spreader. 2. the gantry hook from the variable. 3. load weighing and display.
QDY double girder double-track Metallurgic Crane
QDY Metallurgic Crane Cap. 5-10t
QDY Metallurgic Crane Cap. 16/3. 2-20/5t
QDY Metallurgic Crane Cap. 32/5-50/10t
QDY Metallurgic Crane Cap. 74/20t
YZ four beams and four-track Foundry Crane
YZ Foundry Crane Cap. 100/32-125/32t
YZ Foundry Crane Cap. 125/32-140/40t
YZ Foundry Crane Cap. 100/32-125/32t
YZ Foundry Crane Cap. 140/40t
YZ Foundry Crane Cap. 160/40t
YZ Foundry Crane Cap. 180/50-240/75t
YZ Foundry Crane Cap. 280/75-320/80t
